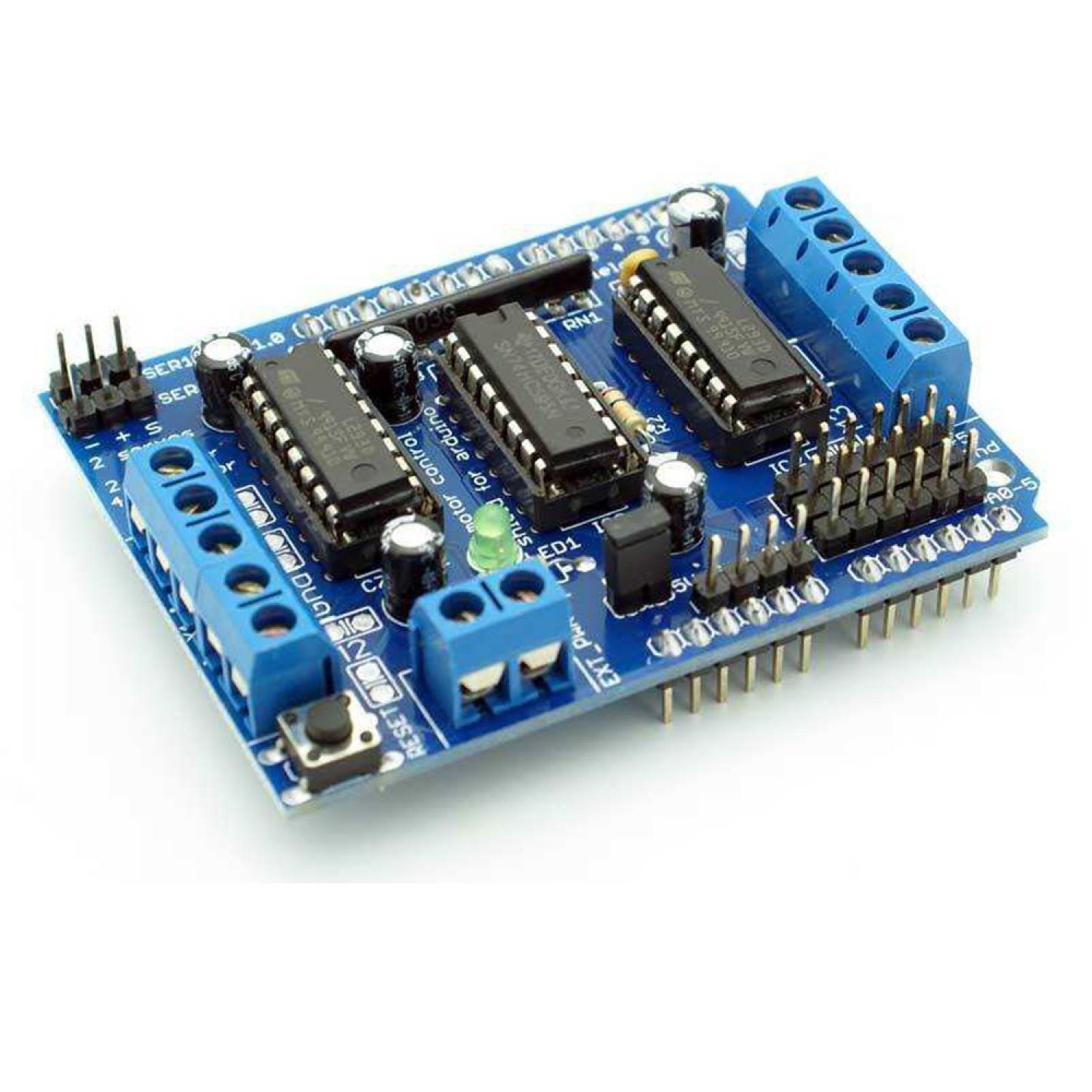

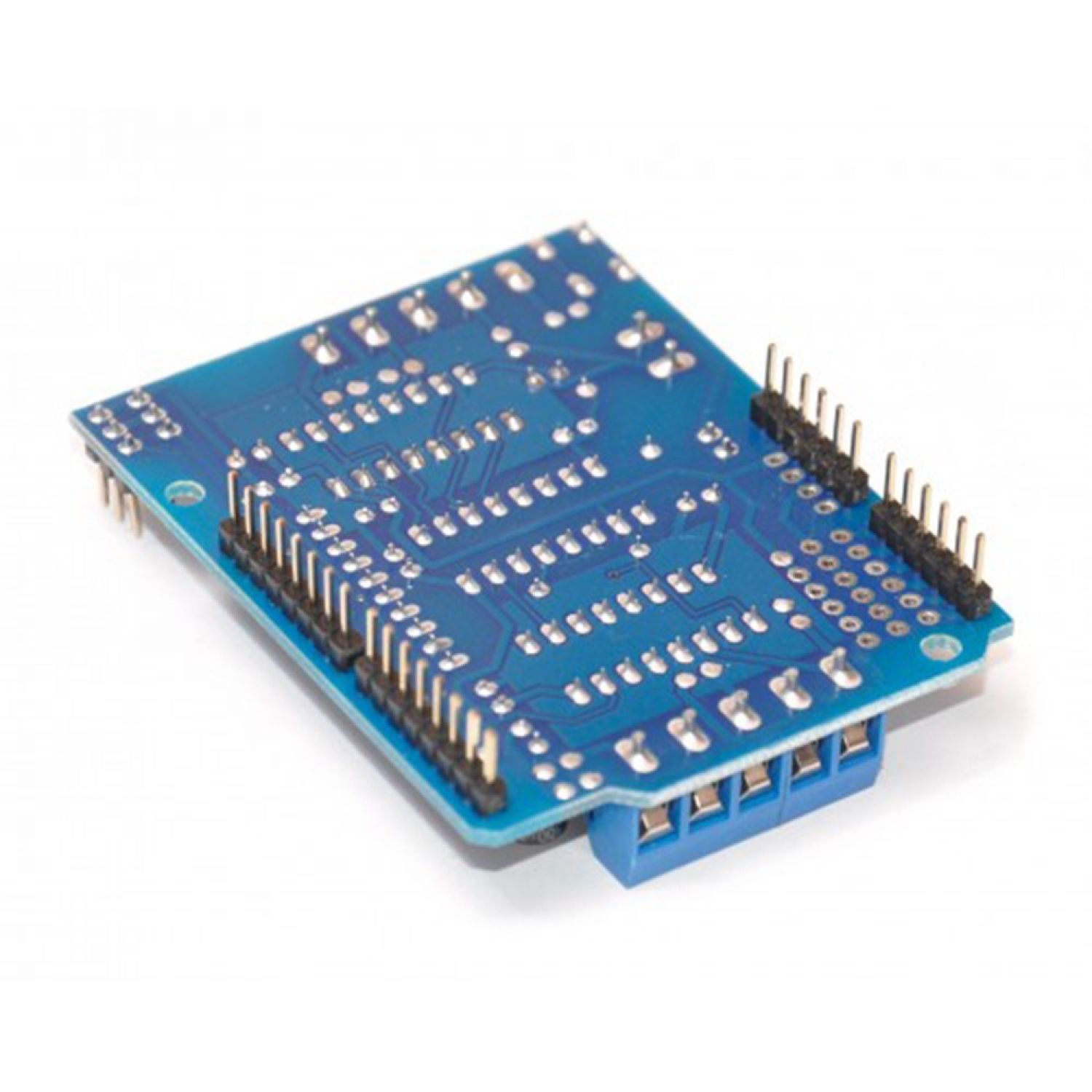

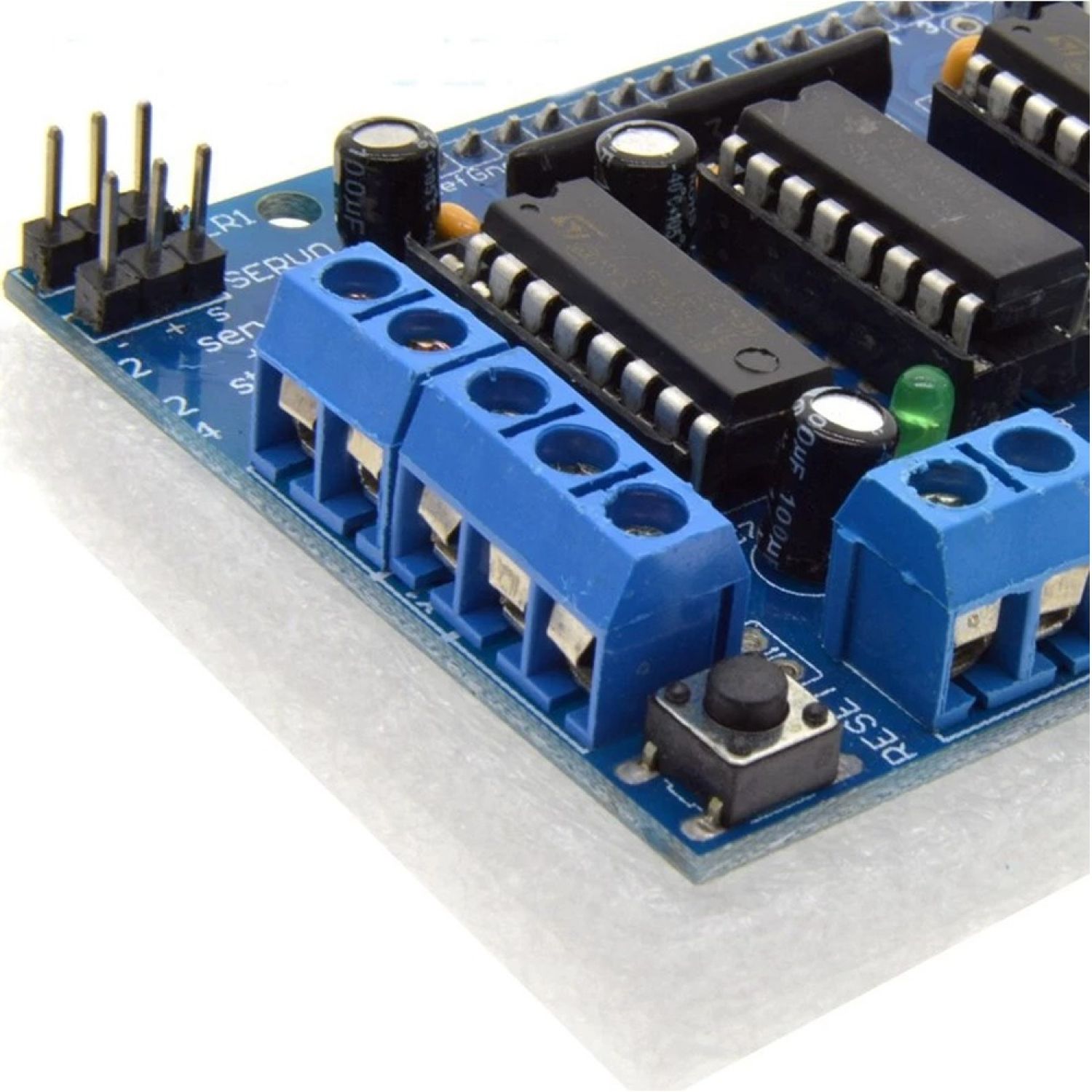

L293D Motor Drive Shield Expansion Board

Product Description:

The L293D Motor Drive Shield Expansion Board is a versatile and powerful motor control solution designed for use with various types of motors in your projects. Ideal for robotics and automation, this board offers robust performance and flexibility.

Features:

• Motor Control:

  • DC Motors: Drive up to 4 bi-directional DC motors with individual 8-bit speed selection.
  • Stepper Motors: Control up to 2 stepper motors (unipolar or bipolar) with options for single coil, double coil, or interleaved stepping.
  • Servos: Includes 2 interfaces for 5V servos, connected to the system’s high-resolution dedicated timer for jitter-free operation.

• H-Bridge Configuration:

  • Four H-Bridge drivers, each providing 0.6A continuous (1.2A peak) current with thermal protection to safeguard against overheating.
  • Compatible with motors operating on 5V to 36V DC.

• Power Management:

  • External power supply range: 0V – 25V, providing flexibility for various power sources.
  • Pull-down resistors keep motors disabled during power-up to prevent unintended movement.

• Size and Weight:

  • Dimensions: 7.5 x 6 x 1.5 cm
  • Net Weight: 38g

• Pin Configuration:

  • Pin Count: 16 pins for comprehensive connectivity and control.

• Chip Used: L293D, known for its reliability and effectiveness in motor control applications.

This motor drive shield expansion board is designed to provide reliable and efficient control for a wide range of motors and servos, making it an essential component for your robotics and automation projects.
