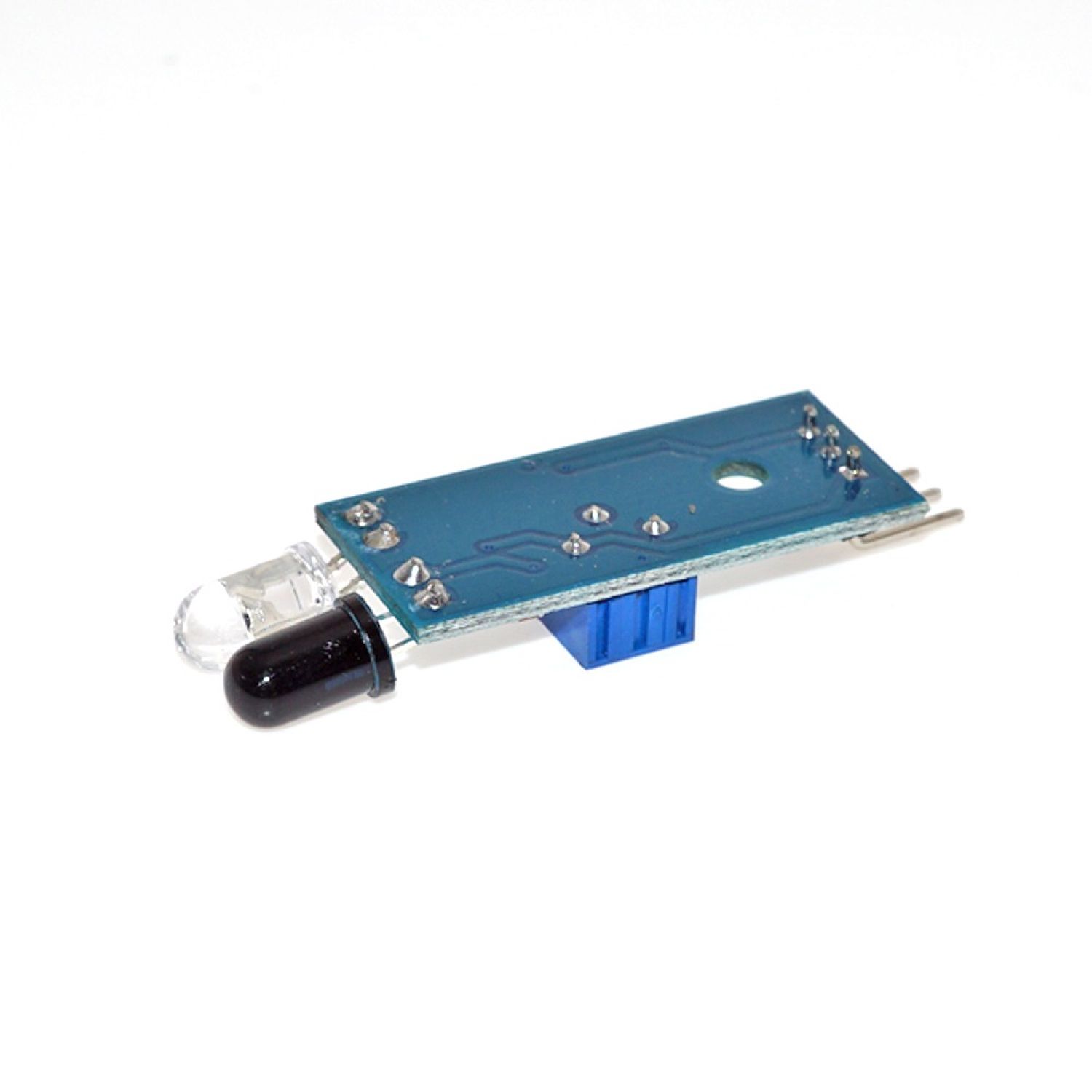

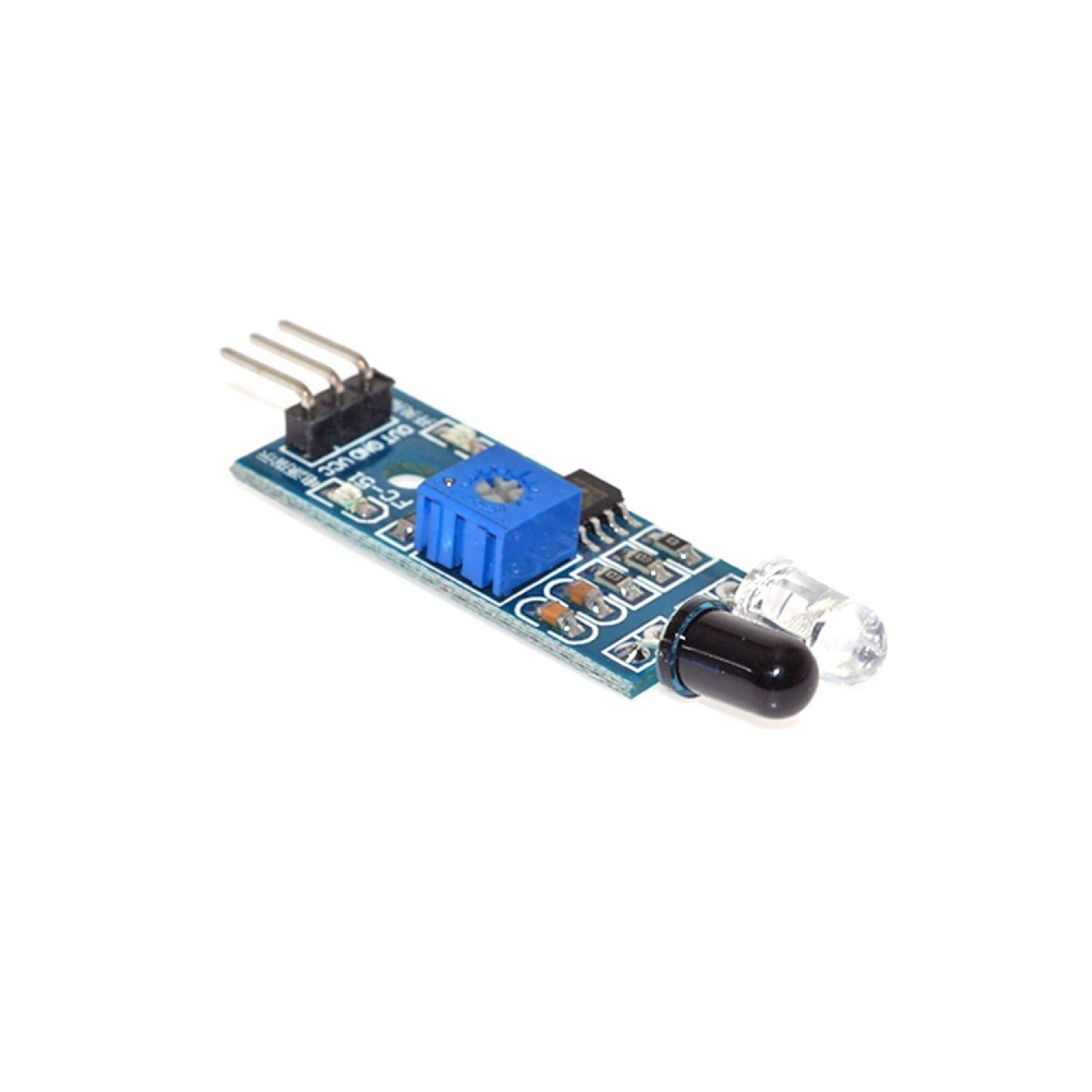

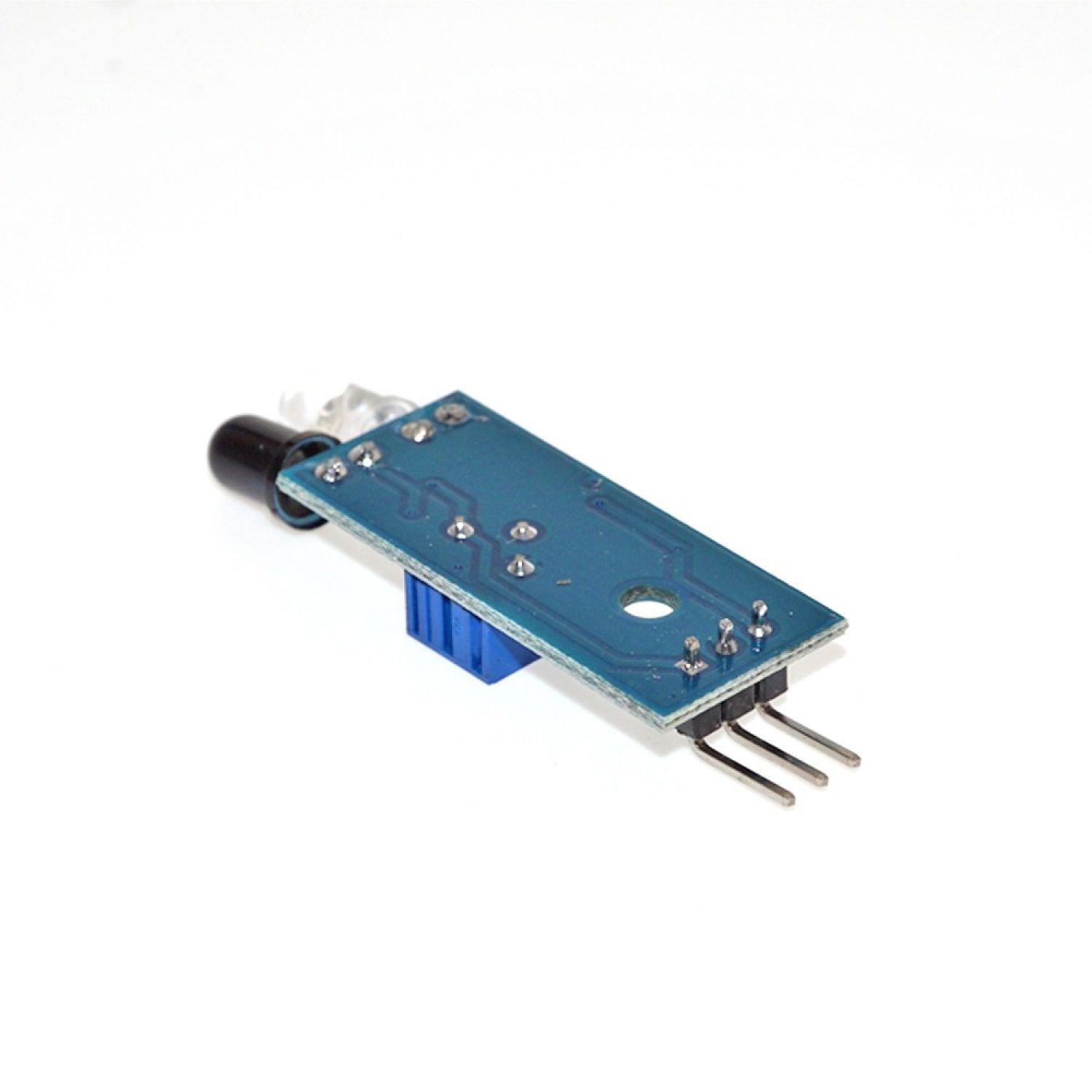

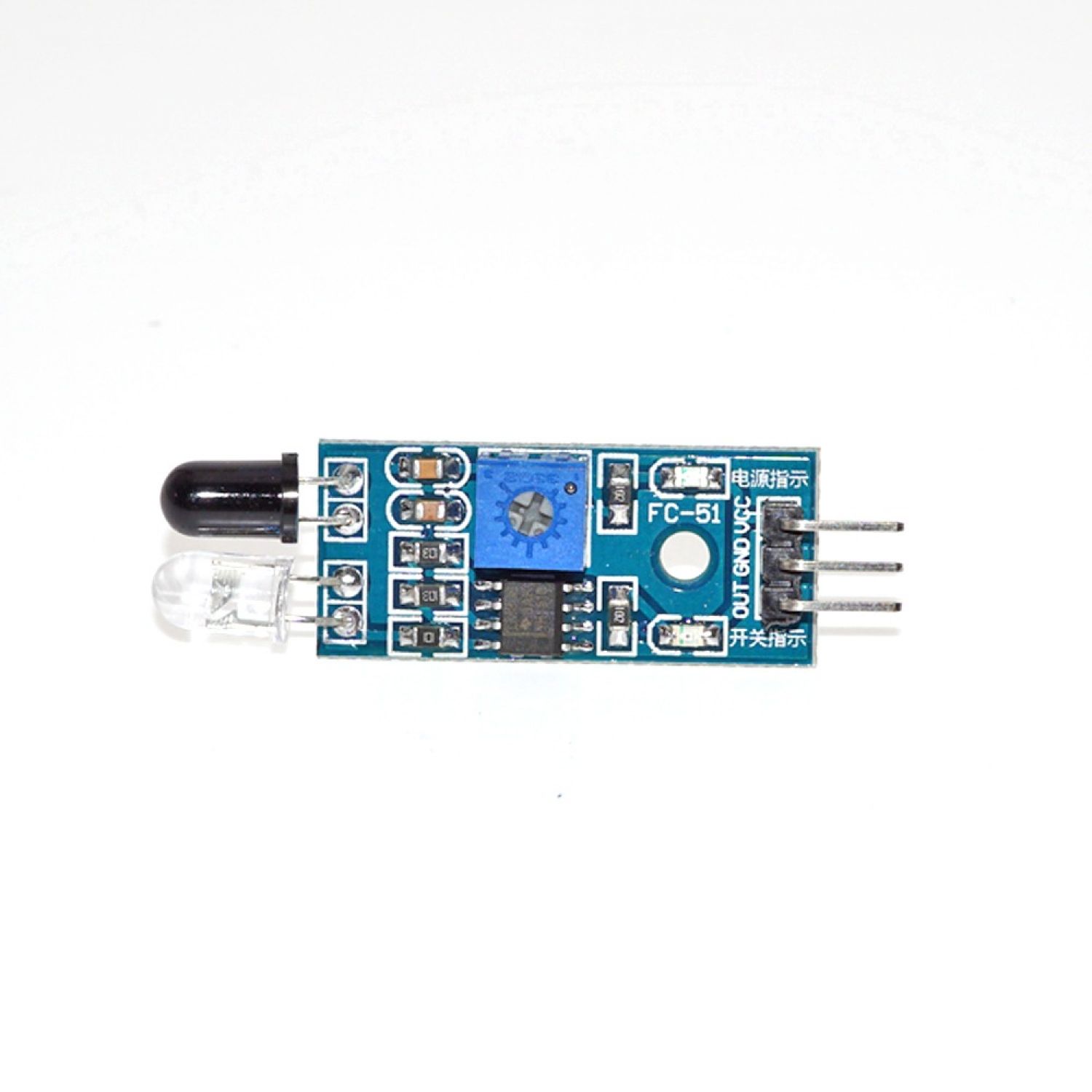

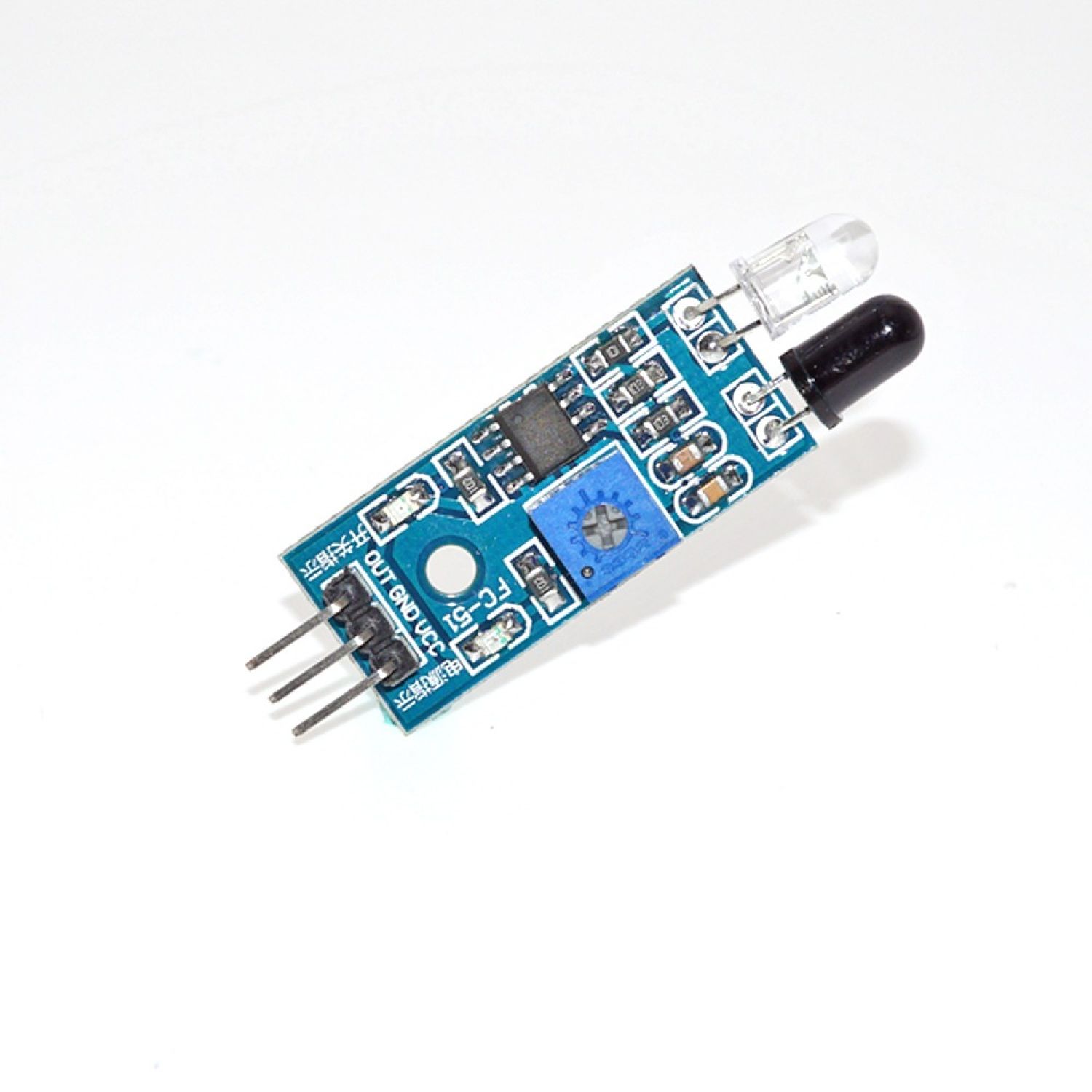

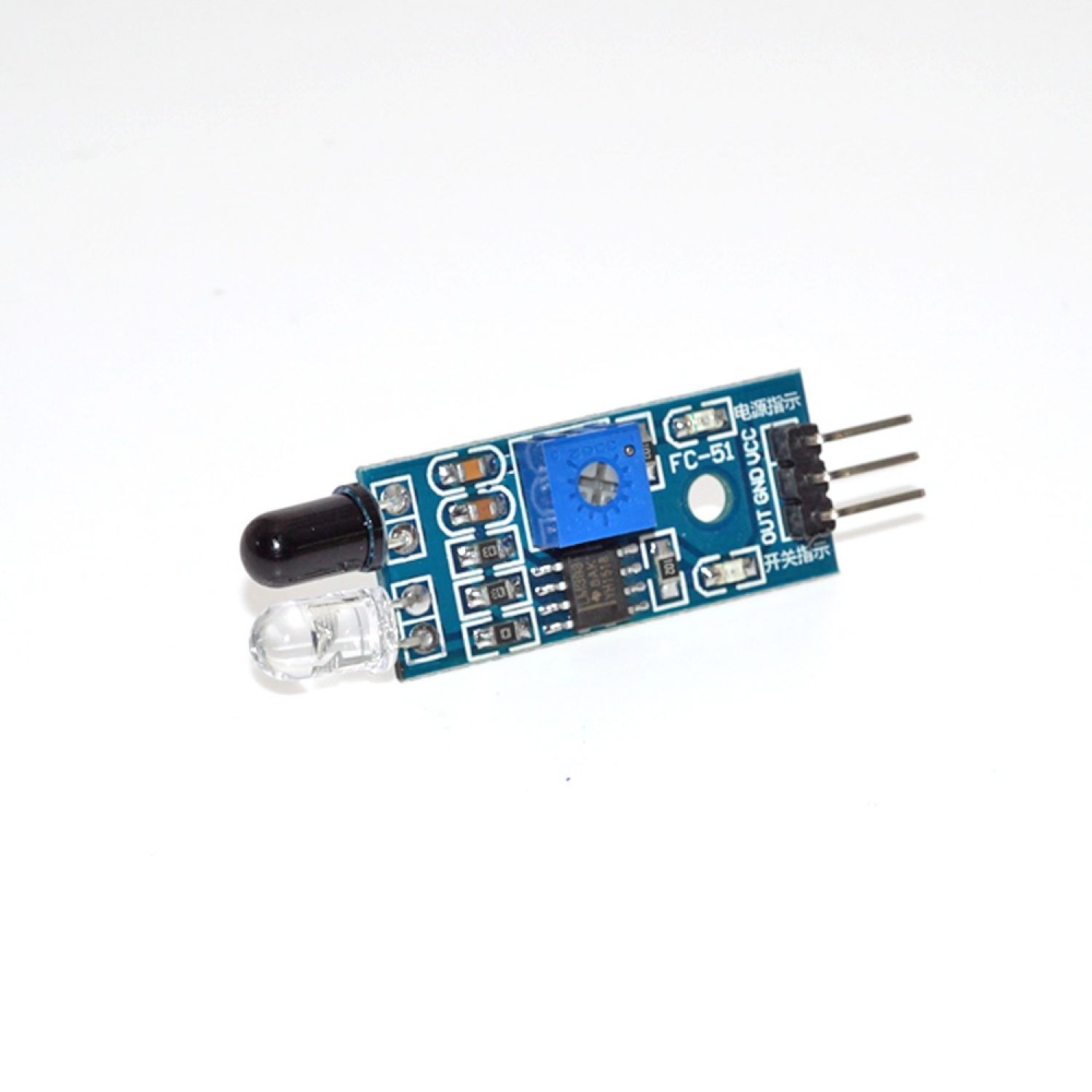

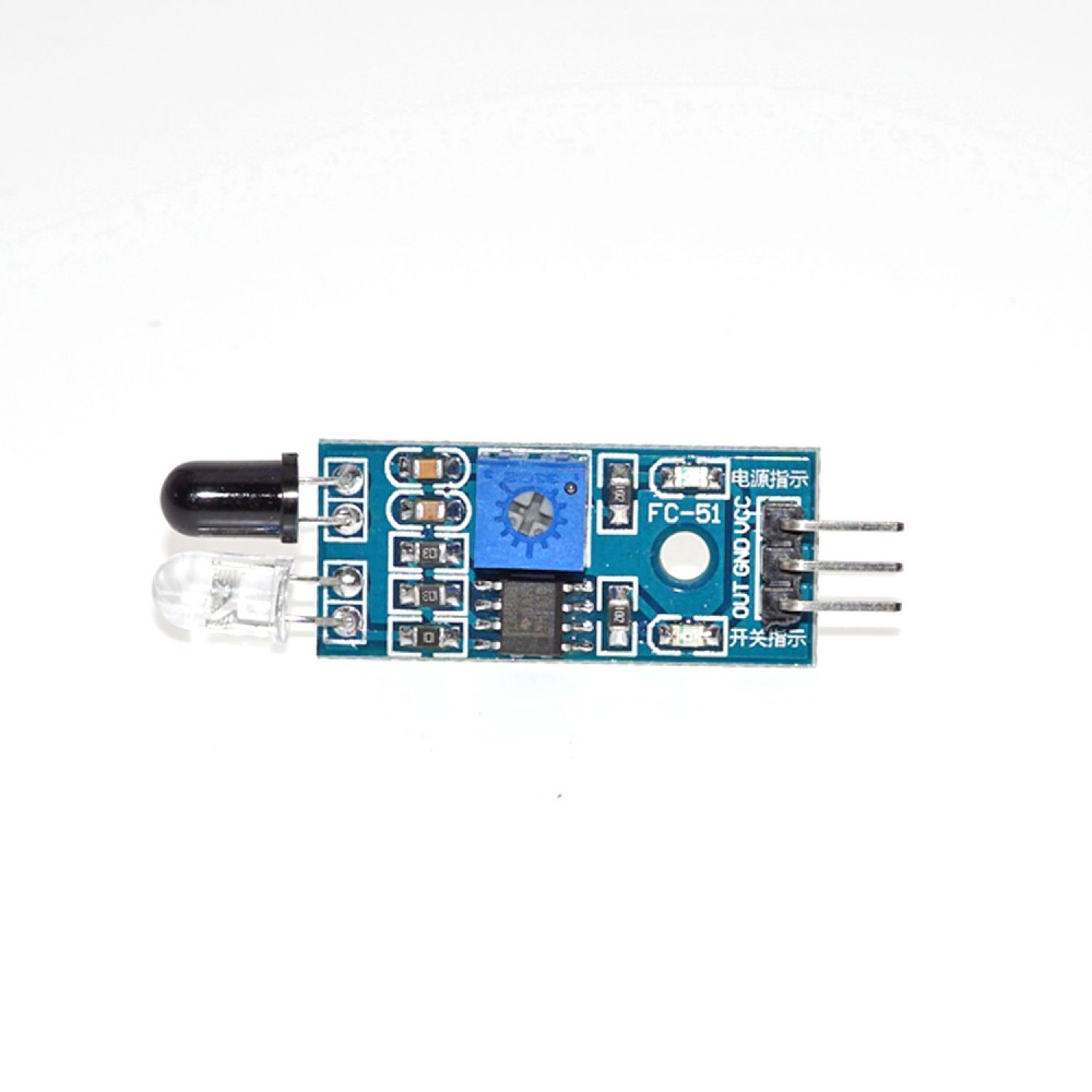

Infrared Tube Module Photoelectric Reflex Sensor

Product Description:

1. Obstacle Detection: The module detects obstacles within a range of 2 to 30 cm. When an object is detected, the green indicator light on the board illuminates, and the OUT port outputs a low-level continuous signal. The detection distance can be adjusted using the onboard potentiometer: turning it clockwise increases the detection range, while counterclockwise decreases it. The detection angle is 35°.

2. Active Infrared Sensors: Utilizes infrared technology to detect reflections from objects. The detection range varies with the reflectivity of the target: black objects are detected at shorter ranges, while white or highly reflective objects can be detected at greater distances. Larger reflective surfaces enhance detection range compared to smaller ones.

3. Output Port: The OUT port can be directly connected to a microcontroller's I/O port or used to drive a 5V relay. Wiring connections are as follows: VCC to VCC, GND to GND, and OUT to IO.

4. Stable Operation: Features a comparator LM393 for stable and reliable performance.

5. Power Supply: Operates on a 3V to 5V DC power supply. The red power indicator lights up when the module is powered on.

6. Mounting: Includes 3mm screw holes for easy and secure installation.

This infrared photoelectric reflex sensor module is ideal for obstacle detection and distance measurement in various electronic projects, offering adjustability, stability, and easy integration with microcontrollers..
